                       Case Study #1 - An ATM Network Implementation

_________________                                                                                  __________

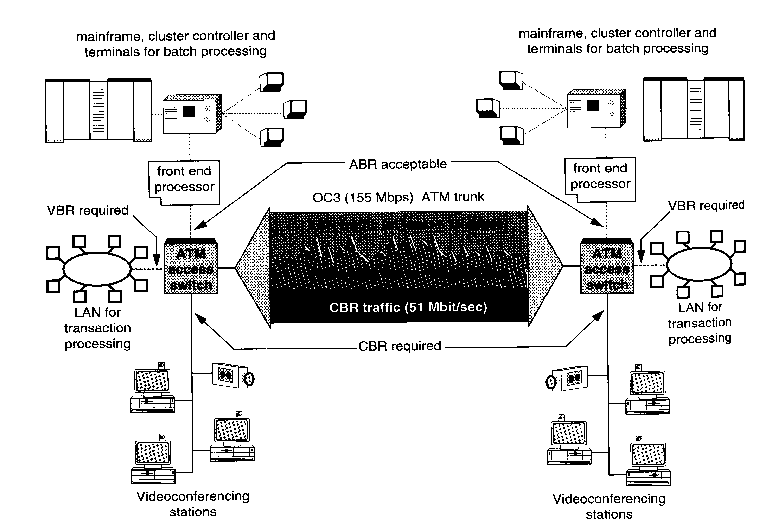

This diagram shows two locations of an enterprise using ATM switches. The two switches are connected using a  SONET link running at OC-3 (155 M bps).

Customer Application#1 - Videoconferencing, using Constant Bit Rate (CBR) ATM service at 51 M bps.

Customer Application #2 - Mainframes, Cluster Controllers and Terminals for batch processing using Available Bit Rate (ABR) ATM service at 1.5 M bps.

Customer Application #3 - LAN for Transaction Processing using Variable Bit Rate (VBR) ATM service at 100 M bps.
