Seminar - An Overview of Communications Technologies

Module 5 - SONET, WDM, DWDM and B-ISDN Technologies                                                             Slide 37 of 76 _________________                                                                                  __________

                                               STS-1 Structure

_________________                                                                                  __________

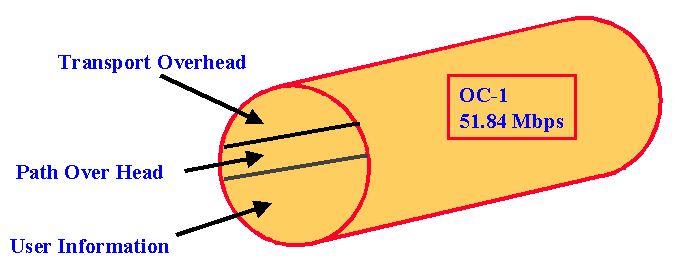

STS-1 frame carries 9X90 8 bit bytes at 51.840 M bps. The breakdown of the STS frame is as follows:

Transport Over Head (TOH) - 1.728 M bps

Path Over Head (POH) - 0.576 M bps

User Information Payload - 49.536 M bps
