Seminar - An Overview of Communications Technologies

Module 5 - SONET, WDM, DWDM and B-ISDN Technologies                                                             Slide 41 of 76 _________________                                                                                  __________

                                               Concatenated Payloads

_________________                                                                                  __________

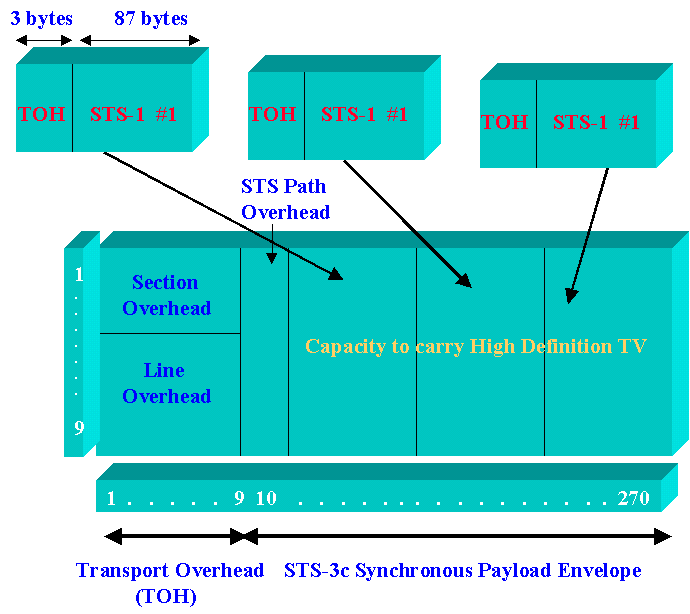

STS-1 frames are mapped into higher order signals. A STS-3c payload envelope can carry High Definition TV signals.
