Seminar - An Overview of Communications Technologies

Module 5 - SONET, WDM, DWDM and B-ISDN Technologies                                                             Slide 43 of 76 _________________                                                                                  __________

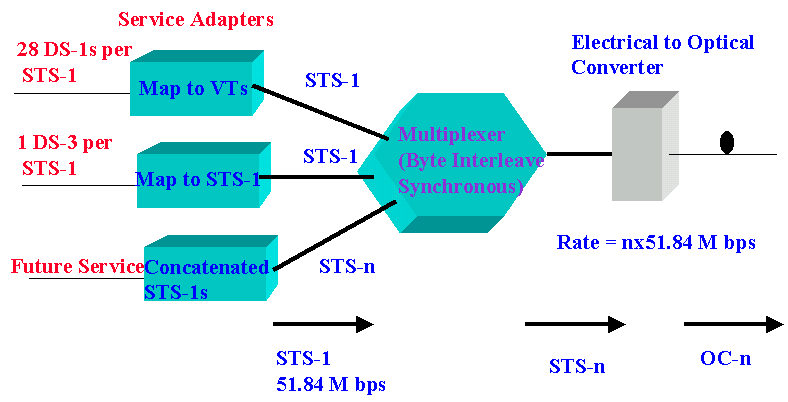

                                              SONET Multiplexing

_________________                                                                                  __________

Any type of service (voice, high speed data and video) is accepted by the Service Adapter. A Service Adapter maps the signal to the payload envelope of the STS-1 or VT. All signals are eventually converted to STS-1 or higher.

Future services include video, FDDI, Broadband ISDN, ATM and MPEG-2.
