Module 5 - SONET, WDM, DWDM and B-ISDN Technologies                                                              Slide 66 of 76 _________________                                                                                  __________

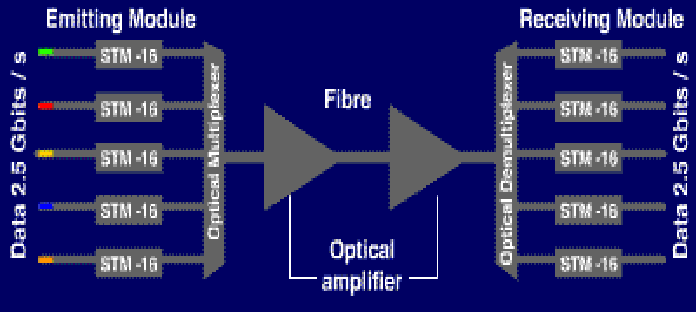

                                      A WDM System

_________________                                                                                  __________

This WDM system carries 4 STM-16 (2.5 G bps) over a fiber.
