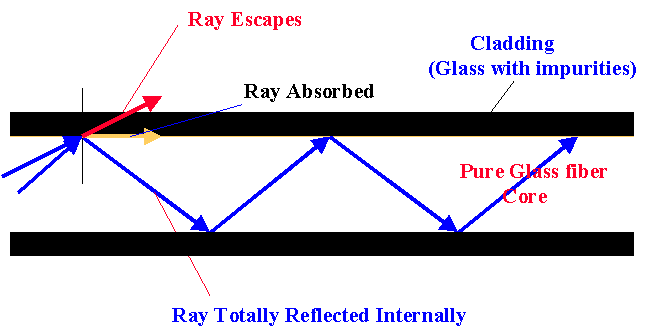

                          Principle of Fiber Transmission

_________________                                                                                  __________

The fiber cladding has a lower refractive index than the fiber core. The entering light wave is reflected back to the center of the core. The cladding is formed by infusing impurities into the fiber.
