Seminar - An Overview of Communications Technologies

Module 7 - LAN, WAN, VPN, WLAN, MAN, FDDI and Optical MANS                                                      Slide 21 of 45 _________________                                                                                  __________

                               1000 M bps Ethernet LAN Configuration
                                                     (using Cisco equipment)

_________________                                                                                  __________

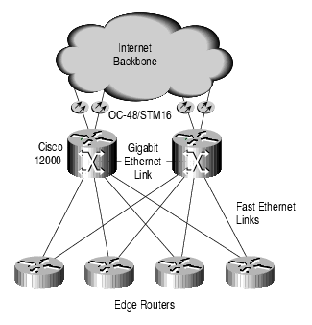

This configuration uses Cisco 12000 Series Fast Ethernet links for Point of Presence (POP) link connections to the Internet Backbone network. The Gigabit Ethernet link is used to connect two Cisco 12000 routers.
