Seminar - An Overview of Communications Technologies

Module 4 - ATM Technology                                                                                                                      Slide 16 of 46 _________________                                                                                  __________

                             ATM Network Building Blocks - Virtual Circuits

_________________                                                                                  __________

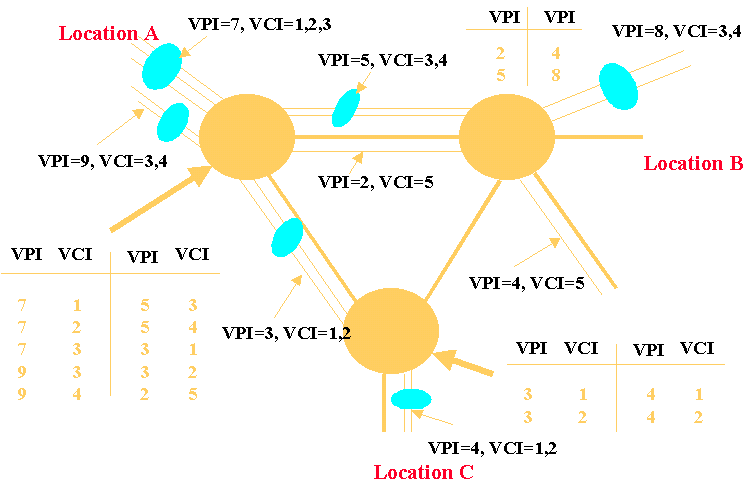

Virtual Channels (VCs) from an end-user are bundled into Virtual Paths (VPs). The ATM switch, using translation tables, maps the incoming VCs and VPs to the outgoing VCs and VPs.

Tables show how the switch maps the VCs and VPs for end-to-end connections.
